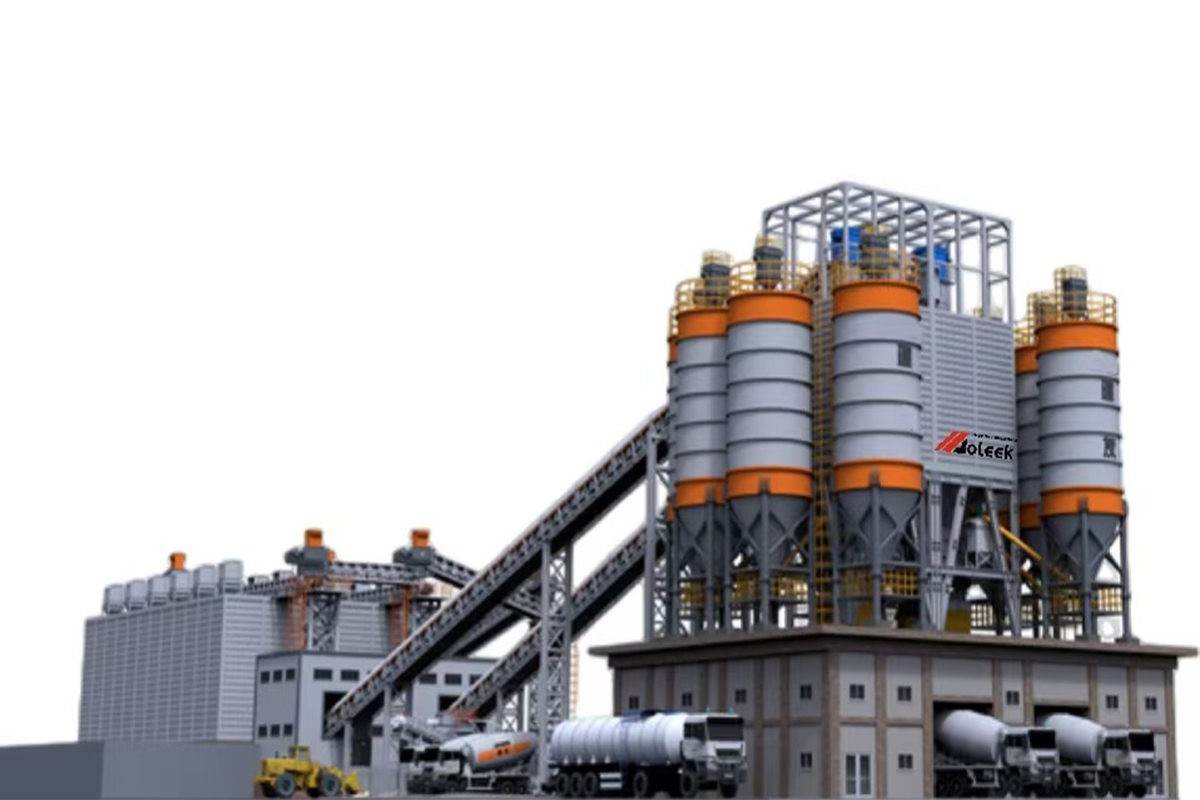

Standard Commercial Concrete Mixing Building / T Series Concrete Mixing Equipment
Applicable scenarios:It is applicable to the production and supply of commercial concrete in places with limited space, the construction of large-scale engineering projects or medium and large concrete prefabricated product factories.
- Rated productivity: 180-300 m³/h
- Driving power: 2*55-2*90 kW
- Discharge capacity: 3000-5000L
Technical features
Flexible site layout
The underground bunker feeding system and inclined belt conveyor are adopted, enabling a flexible site layout.
High production efficiency
The aggregate bin is placed on top, with a magnificent structure and high production efficiency.
High-precision metering and high-efficiency mixing techniques
- High-precision metering and high-efficiency mixing techniques can maximize the quality of concrete.
It is applicable to the production and supply of commercial concrete
- It is applicable to the production and supply of commercial concrete, the construction of large-scale engineering projects or medium and large concrete prefabricated product factories.
Performance parameters
| Comparison items | HLS180-5T | HLS240-5T | HLS270-5T | HLS300-5T |
| Theoretical productivity (m³/h) | 180 | 240 | 270 | 300 |
| Parameters of mixing host | ||||
| Model | JS3000-5G | JS4000-5G | JS4500-5G | JS5000-5G |
| Driving power (Kw) | 2X55 | 2X75 | 2X75 | 2X90 |
| Discharge capacity (L) | 3000 | 4000 | 4500 | 5000 |
| Maximum aggregate particle size (gravel/pebble) mm | ≤60/80 | ≤60/80 | ≤60/80 | ≤60/80 |
| Batching bin | ||||
| Weighing range and metering accuracy | ||||
| Aggregate (kg) | 3×（5000±2％） | 3×（5000±2％） | 3×（5000±2％） | 3×（5000±2％） |
| Cement (kg) | 1500±1% | 2000±1% | 2250±1％ | 2500±1% |
| Fly ash (kg) | 600±1% | 800±1% | 900±1% | 1000±1% |
| Mineral powder (kg) | 500±1％ | 600±1％ | 700±1％ | 800±1％ |
| Water (kg) | 600±1% | 800±1% | 900±1% | 1000±1% |
| Admixture (kg) | 60±1% | 80±1% | 90±1% | 100±1% |
| Discharge height (m) | 4.2 | 4.2 | 4.2 | 4.2 |
| Total machine power (Kw) | 375 | 415 | 450 | 490 |
