Hard rock nemesis, ultra-high energy efficiency, intelligent pre-screening
250-500 （t/h）
Processing power
347.2 （KW）
Machine power
- mobile crushing station

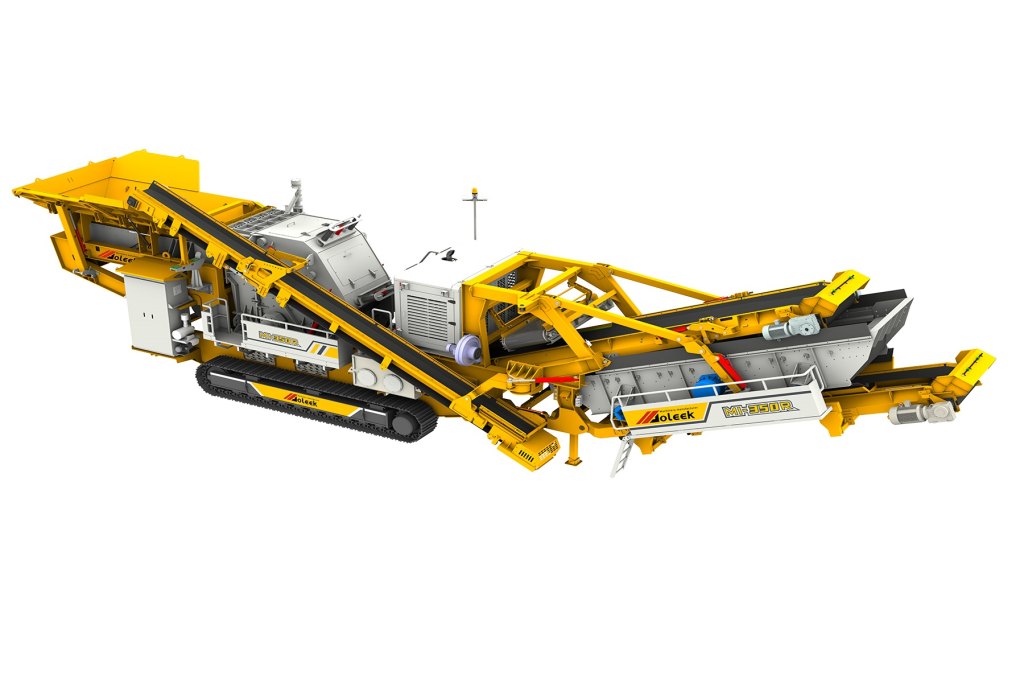

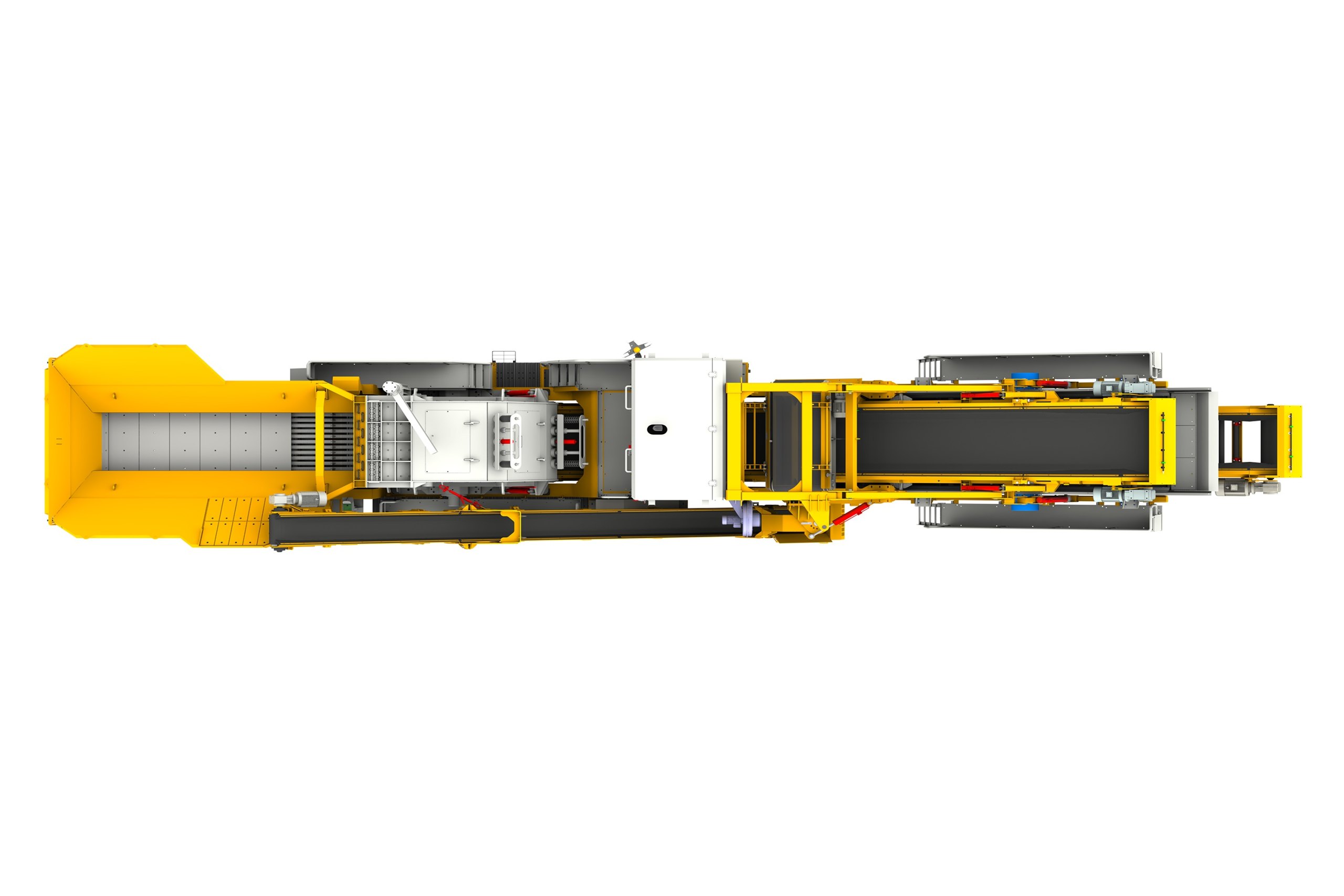

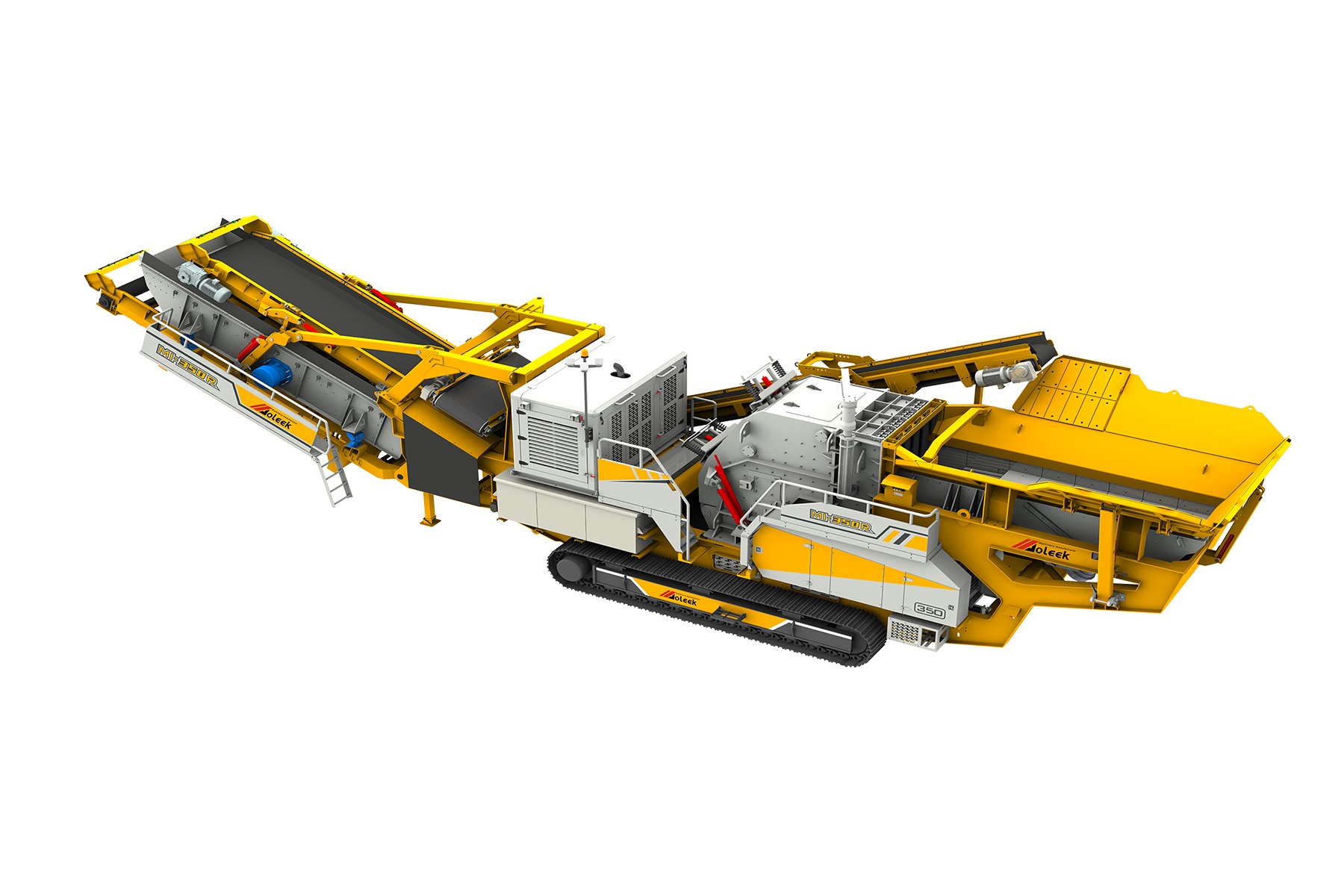

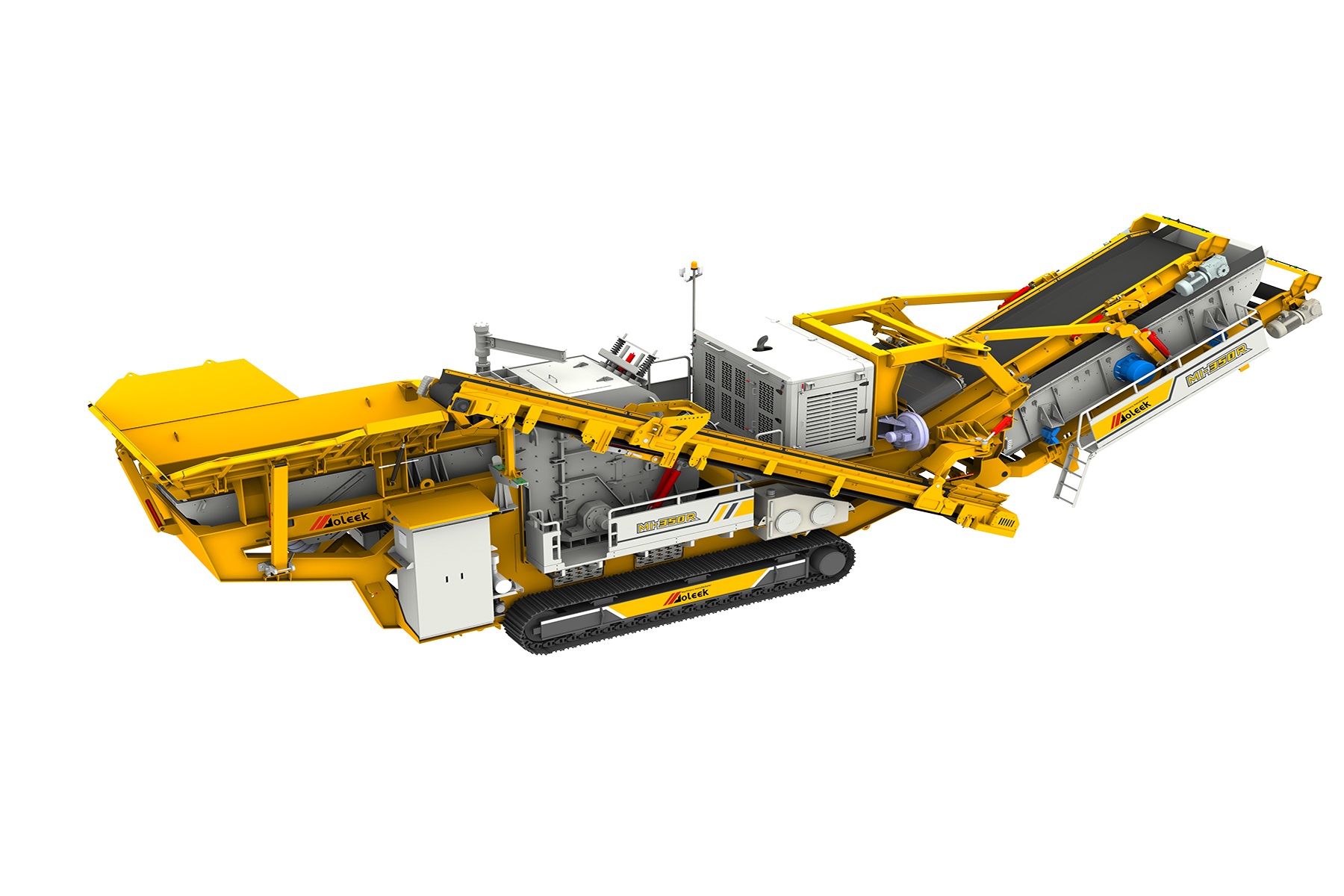

OI350R-Primary and secondary crushing of medium-soft materials Crawler Mobile Impact Crusher
OLEEK OI series crawler mobile impact crushing station, each module is compact and efficient, with hydraulic assistance in many places, equipped with return material screening system, and iron removal wind separation spray device, which can be used for primary and secondary crushing, suitable for medium-soft rock and construction waste. The whole machine has stable performance, convenient transfer and good crushing particle shape
Application scenarios:
Primary and secondary crushing stages of medium to soft materials, mining ore crushing, construction waste recycling, construction aggregate production, highway/rail, road and bridge construction.
| OI350R crawler mobile impact crusher technical parameters | ||
| project | name | OI-350R |
| Silo | Width x length (mm) | 3256×4385 |
| Feeding height (mm) | 4124 | |
| Volume(m³) | 7.5 | |
| Feeder | Width x length (mm) | 1100×4200 |
| Motor power (kW) | 2×5.5 | |
| Main belt conveyor | Belt width x length (center distance) (mm) | 1200×12227 |
| Motor power (kW) | 2×7.5 | |
| Under-screen belt conveyor | Belt width x length (center distance) (mm) | 1000×5730 |
| Stacking height (mm) | 3042 | |
| Motor power (kW) | 11 | |
| Transfer belt conveyor | Belt width x length (center distance) (mm) | 500×11025 |
| Motor power (kW) | 4 | |
| Return belt conveyor | Belt width x length (center distance) (mm) | 500×9100 |
| Motor power (kW) | 7.5 | |
| Return screen | Number of layers/width×length (mm) | 1/1740×5000 |
| Motor power (kW) | 2×6 | |
| Crusher | Motor power (kW) | 280 |
| Discharge range(mm) | 25-100 | |
| Maximum feed (mm) | 600 | |
| Power module | Engine power (kW) | 102 |
| Diesel tank capacity (L) | 200 | |
| Hydraulic oil tank capacity (L) | 300 | |
| Track chassis | Chassis length (wheelbase) (mm) | 4310 |
| Track shoe width (mm) | 500 | |
| Iron remover | Belt width x length (center distance) (mm) | 800×1770 |
| Height from belt (mm) | 300-400 | |
| Motor power (kW) | 3 | |
| Overall performance | Processing capacity (t/h) | 250-500 |
| Machine power (kW) | 347.2 | |
| Maximum climbing grade/maximum side inclination | 20°/10° | |
| Weight(t) | 63 | |
| Driving speed (km/h) | 0.6-1 | |
