Large production capacity, high sand production rate, low consumables cost
100-500(t/h)
Processing power
434(KW)
Machine power
Sand Making
Mode
- mobile crushing station

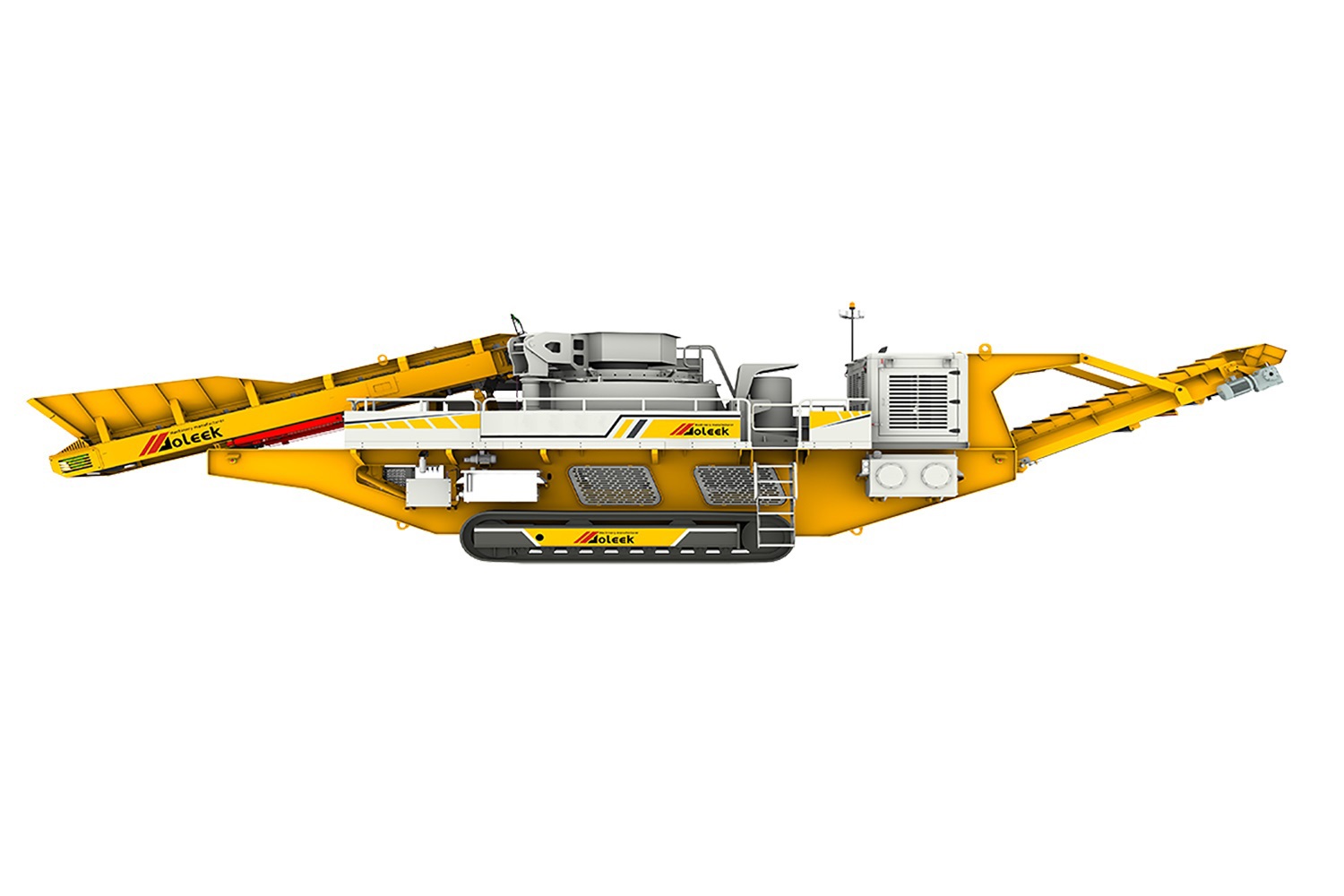

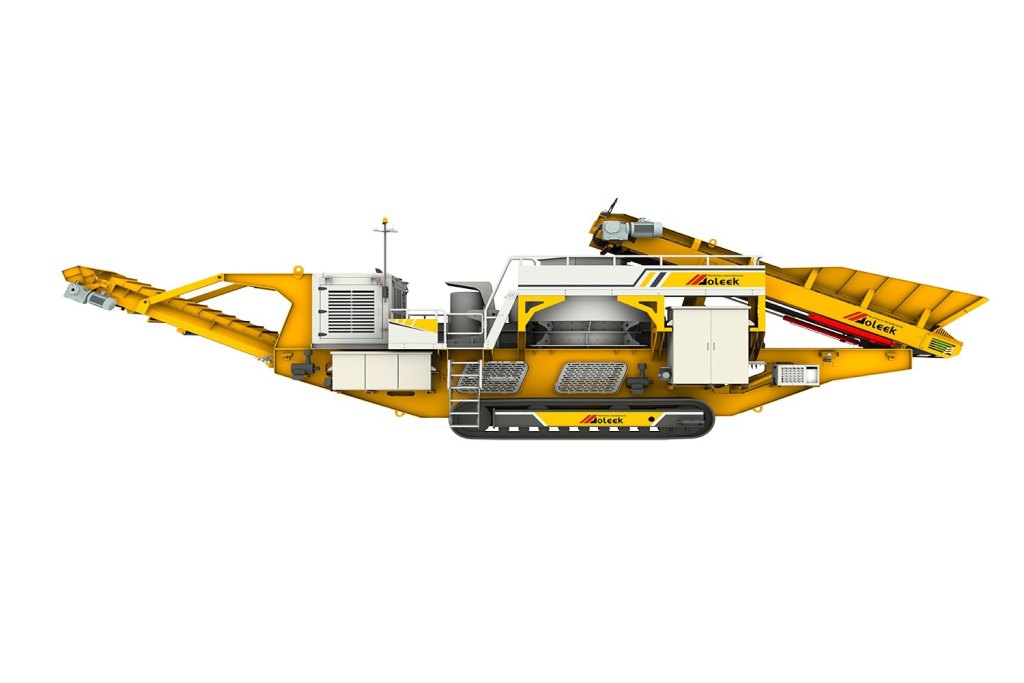

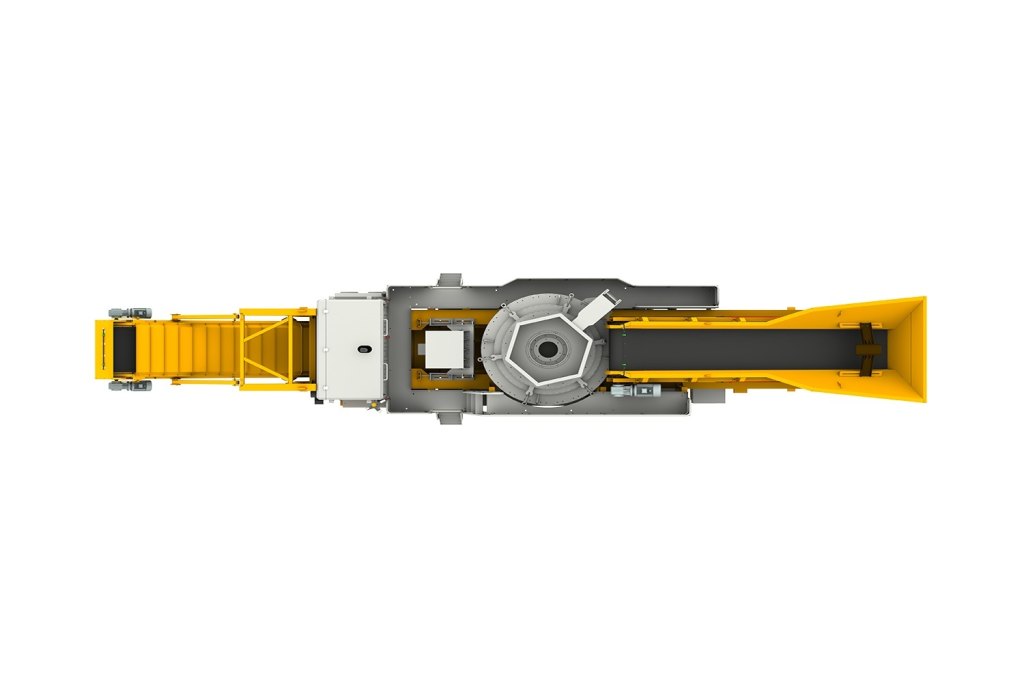

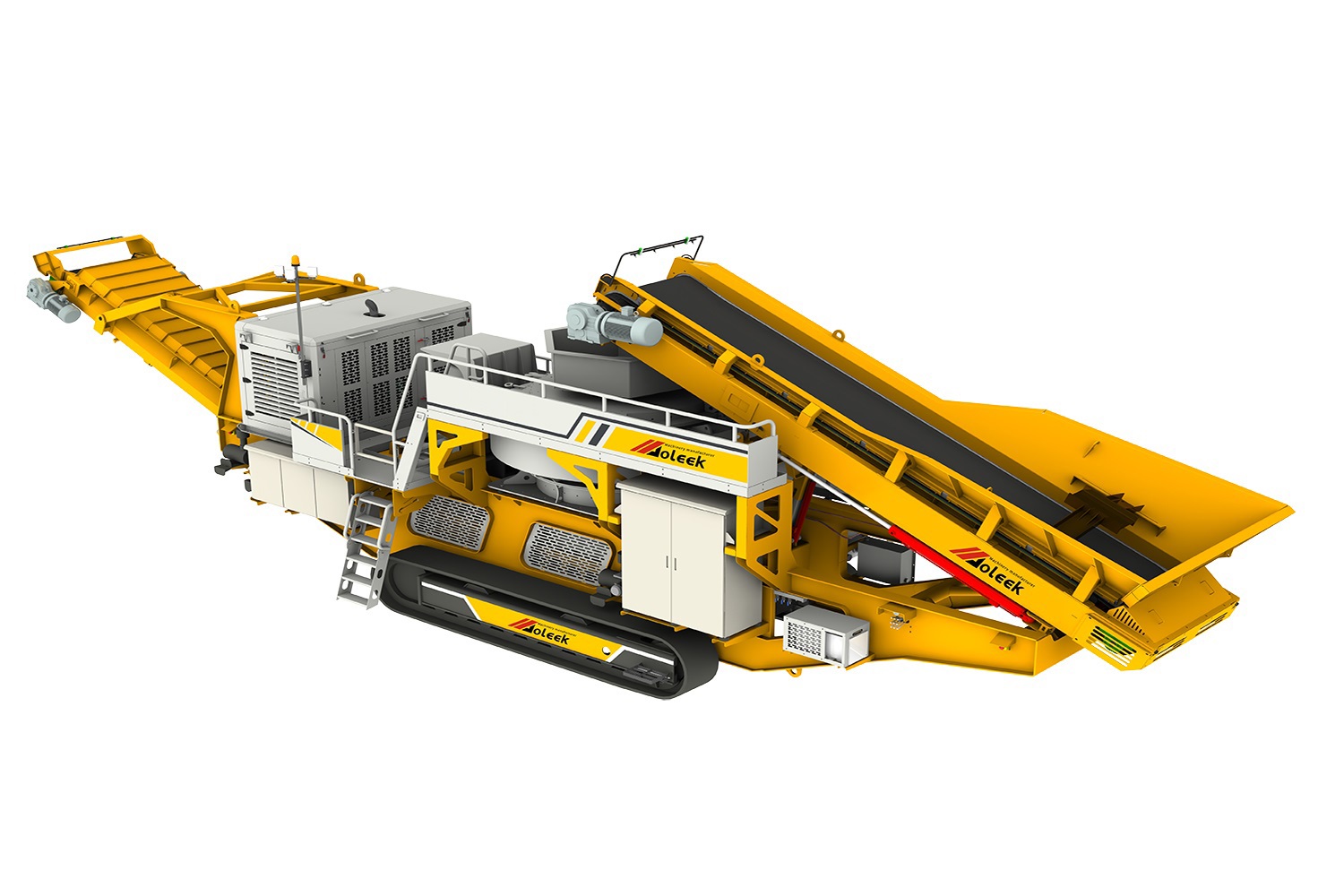

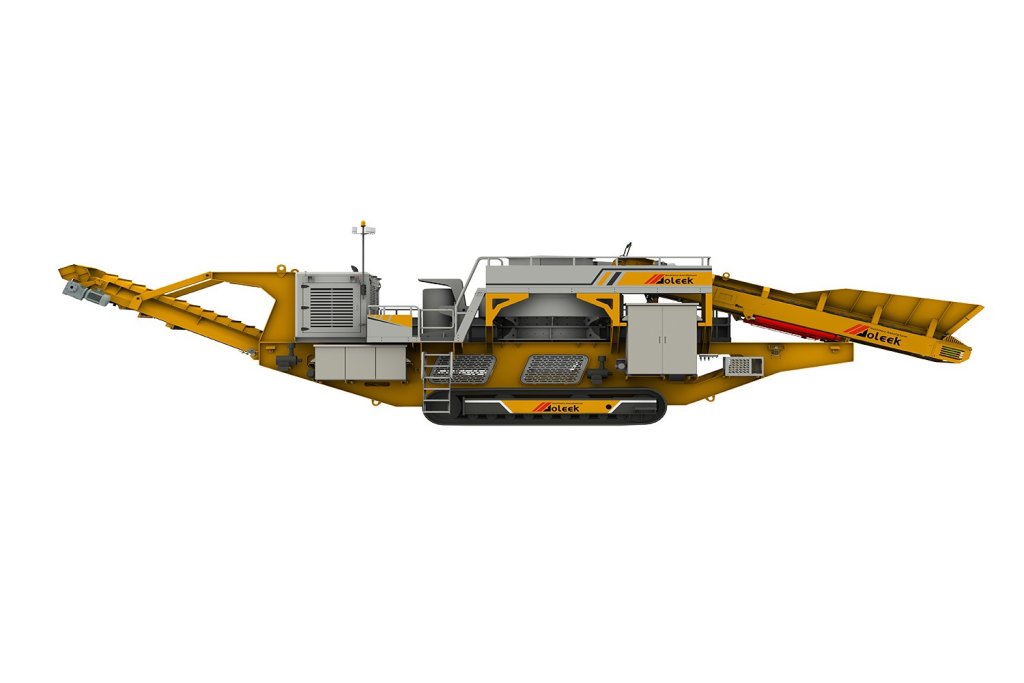

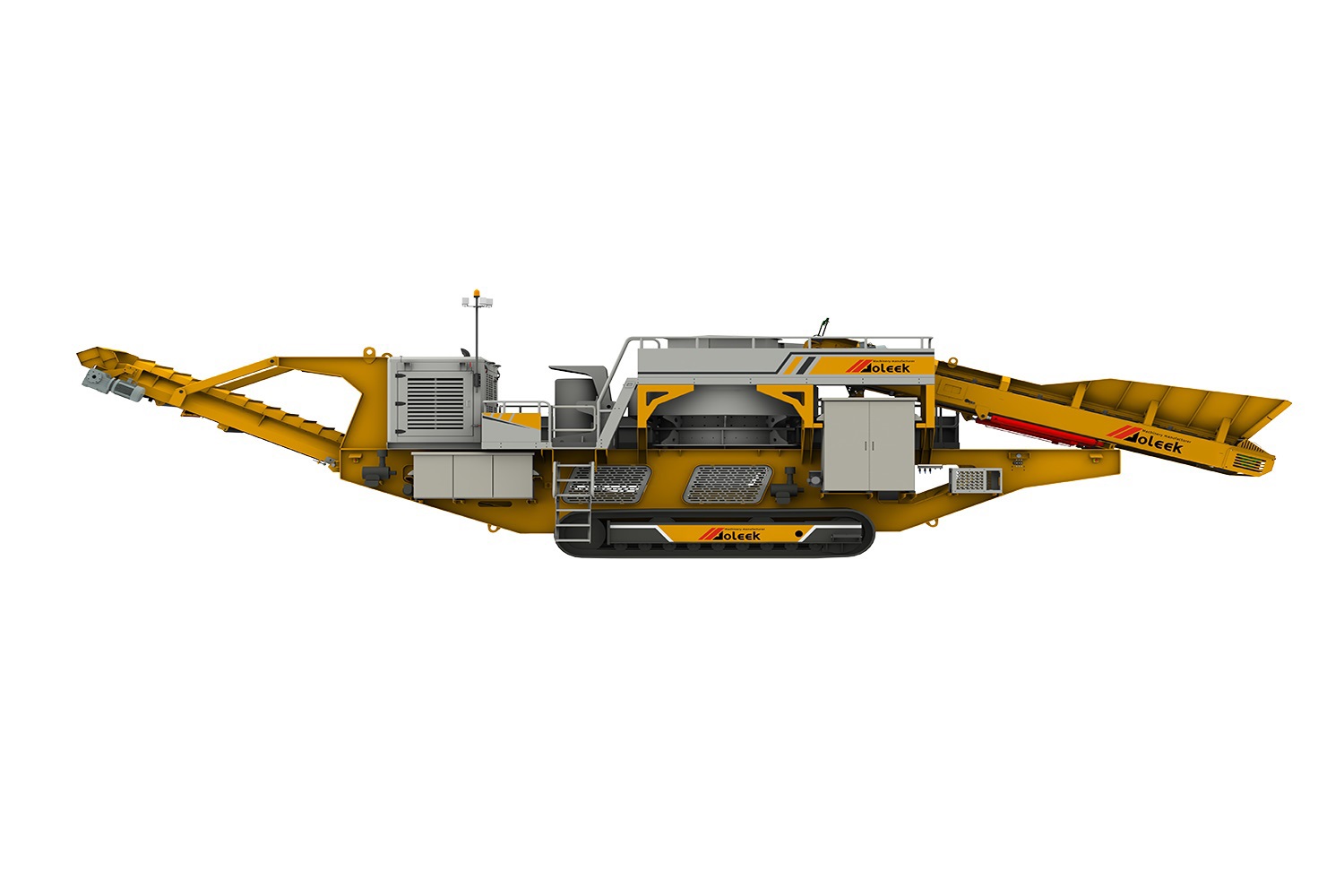

Sand Making Plant-OV-SE-Processing capacity 10-500 t/h Crawler Mobile
OLEEK OV-S series crawler mobile sand making station, the main machine adopts new impeller and special sealing structure, low energy consumption, long life, with external power, oil-electric integration, full hydraulic three drive modes to choose from. Suitable for sand and gravel shaping or further sand making after secondary crushing, flexible overall transportation, large processing capacity, good crushing particle shape.
Application scenarios:
Material shaping, metal and non-metal ores, building materials, artificial sand making, metallurgical slag.
| OV-SE Crawler mobile sand making station | ||
| Project | Name | OV-SE |
| Feeding equipment | Volume (m³) | 5 |
| Feed height (mm) | 2700 | |
| Maximum particle size (mm) | 100 | |
| Feed capacity (t/h) | 500 | |
| Crusher | Rotor diameter (mm) | 1222 |
| Rotor thickness (mm) | 220 | |
| Main engine power (kw) | 400 | |
| Belt conveyor | Main belt width (mm) | 1200 |
| Feed belt width (mm) | 1200 | |
| Finished product belt stacking height (mm) | 3363 | |
| Overall machine performance | Total machine power (kw) | 434 |
| Processing capacity (t/h) | 100-500 | |
| Travel speed (km/h) | 0.6-1 | |
| Total machine weight (t) | 55 | |
| Transport dimensions length × width × height (mm) | 20542×3299×3976 | |
