Hard rock nemesis, integrated crusher and screener, oil and electricity dual-purpose
150-430 （t/h）
Processing power
350.1（KW）
Machine power
- Mobile Crushing & Screening Plants

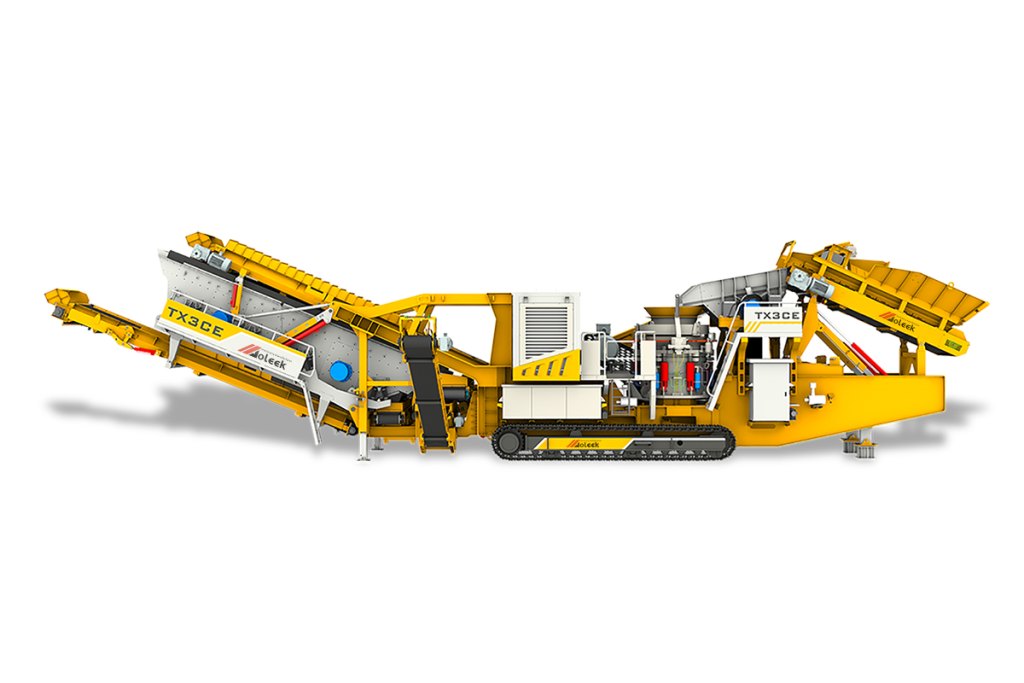

OTX3CE-Integrated crushing-screening/dual-use of oil and electricity Cone screening machine
OTX3CE is the efficient king in the field of crawler mobile medium-hard rock crushing and screening. It not only integrates three core units, vibrating feeder, cone crusher, and three-layer double-stage screen, to achieve the crushing and screening effect of a split production line, but also has an independent pre-screening device to further improve the crushing efficiency; it has also been upgraded to a hybrid power, which can be started with one button on site and start production. It can be widely used in the crushing and screening of medium and high hardness rocks, and is a key step taken by OLEEK in the efficient integration of all-in-one machines.
Application scenarios:
Secondary and tertiary crushing and screening of medium and high hardness materials, secondary crushing and screening of hard rocks (granite/basalt/pebbles/diabase, etc.).
| OX3CE Cone screening machine | ||
| Project | Name | OX3CE |
| Feeding equipment | Feeding height (mm) | 3031 |
| Feeder width × length (mm) | 1200×4055 | |
| Motor power (kw) | 15 | |
| Return screen (double stage) | Number of screen layers | 3 |
| Vibrating screen length × width | 2000×2500/2000×3500 | |
| Motor power (kw) | 4×6kw | |
| Belt conveyor | Main belt width × length (mm) | 1200×13890 |
| Return belt width × length (mm) | 500×10745 | |
| Under-screen belt width × length (mm) | 1200×7572 | |
| Overall machine performance | Machine power (KW) | 350.1 |
| Processing capacity (t/h) | 150-430 | |
| Travel speed (Km/h) | 0.6-1 | |
| Machine weight (t) | 83 | |
| Transportation dimensions length×width×height (mm) | 22259×4133×4090 | |
