Concrete transfer pump It has powerful power, a long conveying distance and is convenient to move.
150-200m
Horizontal conveying distance
80-100m
Vertical conveying distance
- Concrete-related equipment

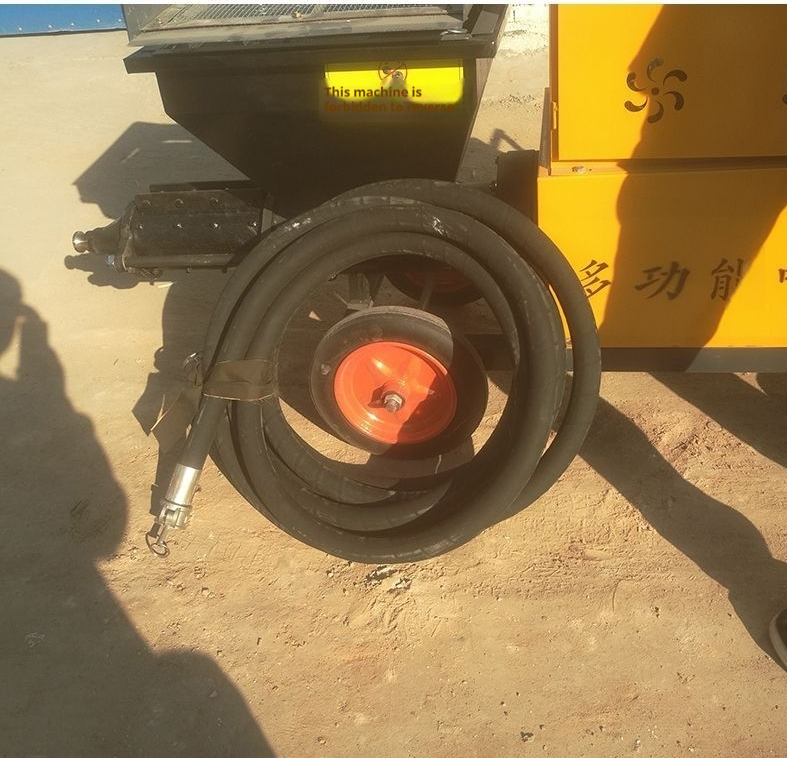

OL-511 Mortar Spraying Machine
Widely used safe and pratical
Product Features
1. Applicable spraying materials: Putty powder, paint, latex paint, stone-like paint, cement mortar, dry powder mortar, thermal insulation mortar, waterproof materials, fireproof materials, heat insulation materials, sound-absorbing materials and other water-soluble materials.
2. The flow rate can be adjusted to achieve a good spraying effect.
3. Besides being able to be switched on and off on the electric control box, it is also equipped with a remote control switch for spraying.
4. The connection between the spray gun and the feeding pipe can be rotated, which is convenient for operation.
5. High construction efficiency and good quality.
6. Compact in size, easy to be transported on site. Moreover, the cost of spare parts is low and maintenance is simple.
7. It is easy to use, fast in operation, material-saving, labor-saving and more cost-effective. Only three people are needed for one machine. The spraying area is 150 square meters per hour (with a thickness of 2 cm).
8. Material ratio (cement): 0.7:3 mortar.
| Model | Model 511 Mortar Spray Machine |
| Overall Dimensions | 1700*600*1100mm |
| Total Weight of the Machine | 300KG |
| Mortar Mixing Ratio | 1:1:3(water:cement: sand) |
| Conveying Flow Rate | 3m³/h |
| Working Pressure | 5-8MP |
| Spraying Area | 150㎡/h |
| Motor Power | 7.5KW |
| Conveying Pipe | 32# 38# |
| Air Pump Power | 2.2KW |
| Voltage | 380V/220V |
| Applicable Range of Maximum Passing Particles | 6MM |
| Applicable Range | Mortar, putty, paint |
| Conveying Distance | Conveying distance: 30m |
| Spraying height: 15m |
