It's a high - quality commercial concrete - pumping equipment suitable for construction facilities such as high - rise buildings, highways, water conservancy, bridges and freight yards.
300m
Horizontal conveying distance
150m
Vertical conveying distance
- Concrete-related equipment

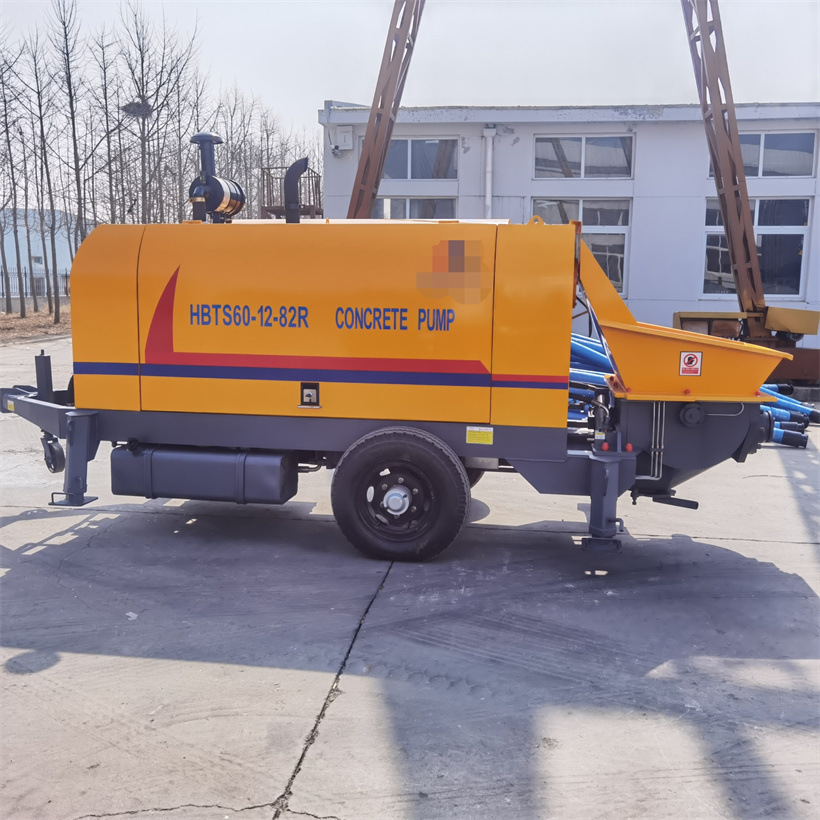

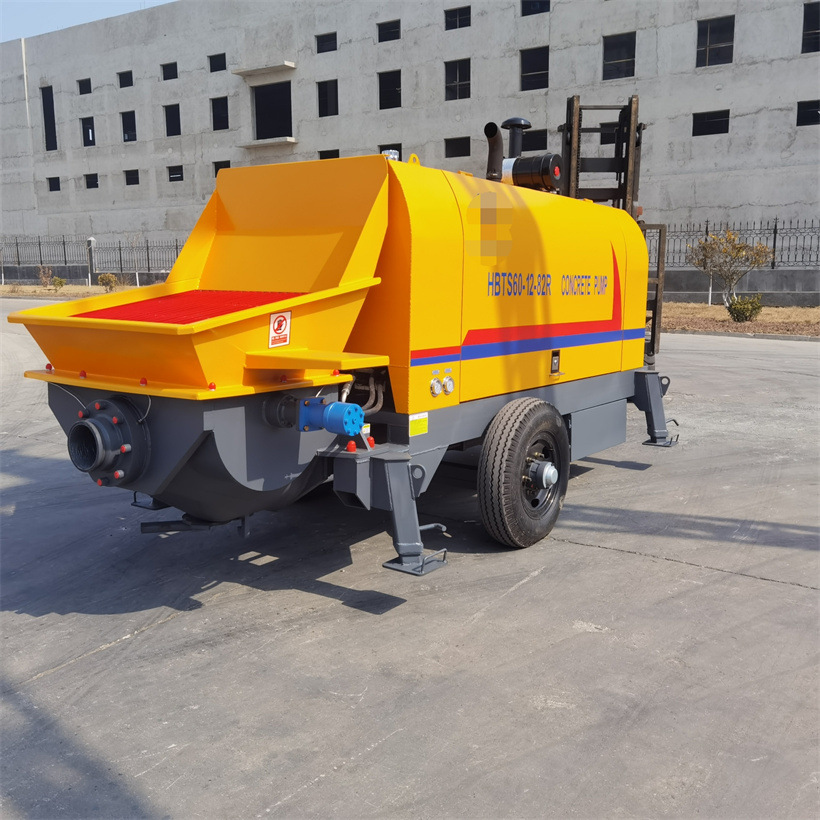

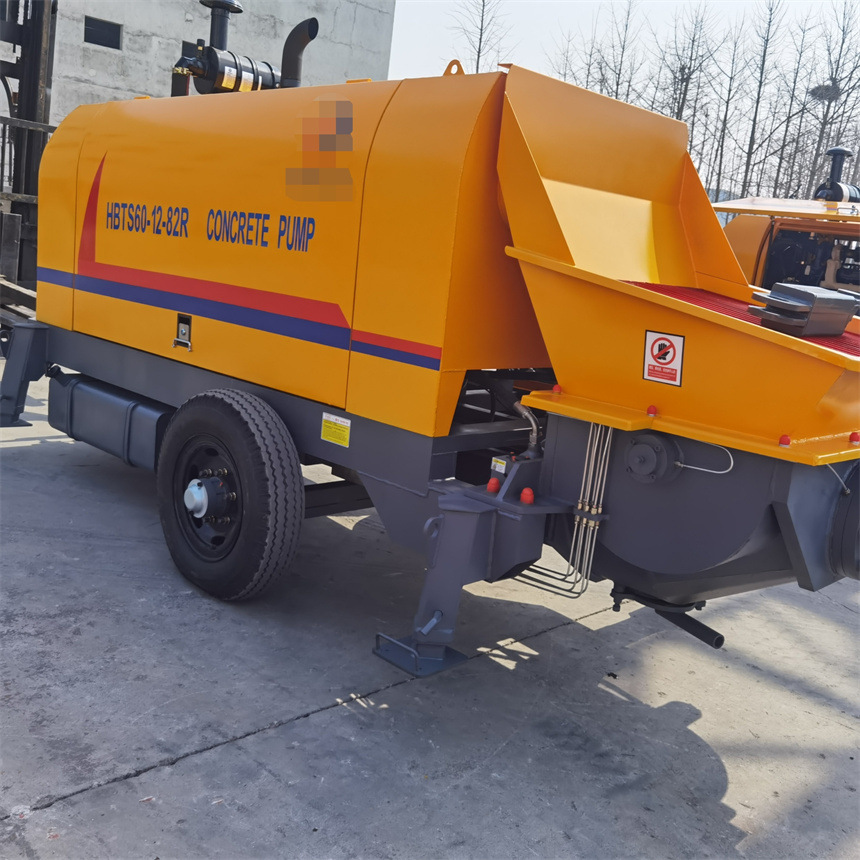

OBTS-60 Model Concrete Transfer Pump
Widely used safe and pratical
1. It adopts an electrically controlled hydraulic system, which is simple and clear and convenient for maintenance.
2. It features a unique reversing buffer design.
3. The centralized lubrication system adopts a multi-point direct oil supply method with high oil supply pressure.
4. It has high pumping pressure, good cooling effect, fast discharging speed and long conveying distance.
| Items | Units | OBTS60R | |
Whole performance of machine | Max.theo. concrete output (L./H.) | m³/h | 61/38 |
| Max.concrete pumping pressure(H. /L.) | MPa | 12/7 | |
| Concrete cylinder diameter×stroke | mm | Ф180×1300 | |
| Hopper capacity×feeding height | L×mm | 400×1250 | |
| Outlet diameter | mm | Ф150 | |
| Max.aggregate diameter | mm | Scree crushed stone:40 50 | |
| Inside diameter of concrete delivering pipe | mm | Ф125 | |
| Max deliver distance (vertical/horizontal) | m | 160/500 | |
Power system | Rated power | KW | 84kw 82kw 85kw optional |
| Rotate speed | r/min | 2100 | |
Hydraulic systems | Circuit type | Open circuit | |
| Pumping system pressure | MPa | 28 | |
| Mixing system pressure | MPa | 6 | |
| Capacity of oil tank | L | 370 | |
| Main hydraulic pump | Kawasaki K3V112 | ||
