Independent pre-screening, intelligent feeding system, large-scale unloading
80-570 (t/h)
Processing power
106.3-149.8 (KW)
Machine power
- mobile crushing station

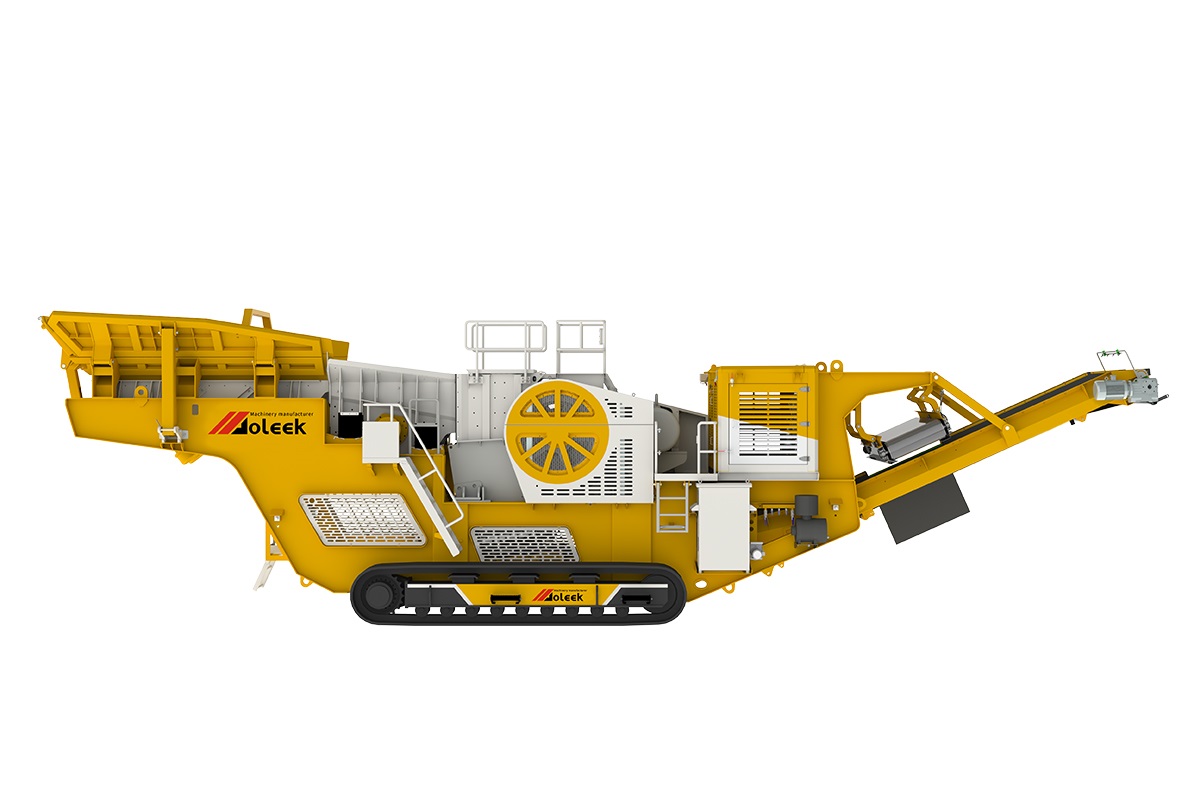

OJ350-MINING JAW CRUSHER-Independent prescreening/Primary crushing of materials
OLEEK OJ series crawler mobile jaw crusher is equipped with European version C series crushing host, super large folding silo, independent pre-screening system, iron removal spray device.
It is mainly used for primary crushing of materials, with large feed size and wide discharge range.

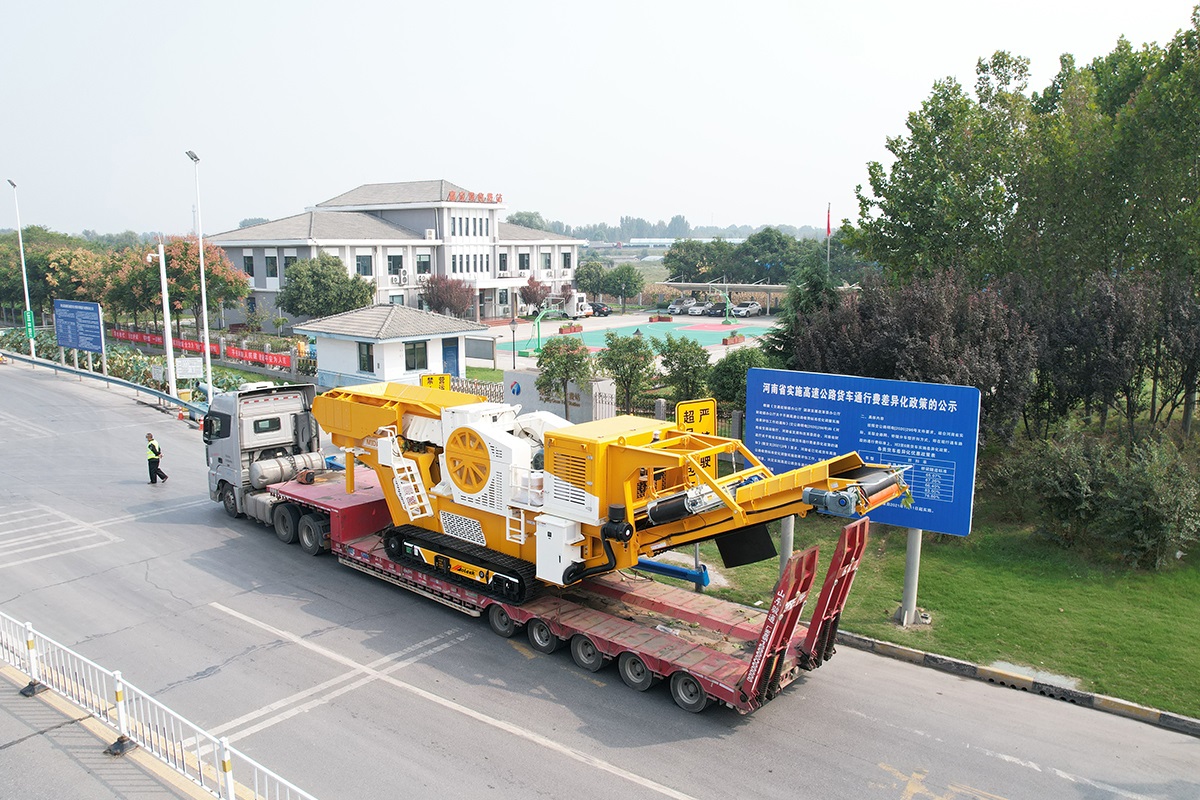

It is suitable for various rocks, easy to transport and high crushing efficiency.
Application scenarios:
primary crushing or primary crushing of medium and high hardness materials, mining ore crushing, construction waste recycling, construction aggregate production, highway/railway, road and bridge construction, etc.
| OJ350 crawler mobile jaw crusher technical parameters | ||
| project | name | OJ-350 |
| Silo | Width x length (mm) | 2750×4200 |
| Feeding height (mm) | 4357 | |
| Volume(m³) | 6 | |
| Feeder | Width x length (mm) | 960×3500 |
| Motor power (kW) | 2×3.7 | |
| Pre-screening | Dimensions (mm) | 1100×2000 |
| Number of layers/screen width × length (mm) | 2/922×1170 | |
| Motor power (kW) | 2×3.7 | |
| Main belt conveyor | Belt width x length (center distance) (mm) | 1200×10350 |
| Height of pile (mm) | 3470 | |
| Motor power (kW) | 2×7.5 | |
| Side conveyor belt | Belt width x length (center distance) (mm) | 650×3450 |
| Stacking height (mm) | 2196 | |
| Motor power (kW) | 4 | |
| Crusher | Discharge range(mm) | 70-200 |
| Maximum feed (mm) | 630 | |
| Host power (kW) | 110 | |
| Power module | Engine power (kW) | 102 |
| Diesel tank capacity (L) | 200 | |
| Hydraulic oil tank capacity (L) | 300 | |
| Track chassis | Chassis length (wheelbase) (mm) | 3840 |
| Track shoe width (mm) | 500 | |
| Iron remover | Adaptable bandwidth (mm) | 1200 |
| Height from belt (mm) | Adjustable | |
| Motor power (kW) | 3 | |
| Overall performance | Processing capacity (t/h) | 160-570 |
| Machine power (kW) | 146.8 | |
| Maximum climbing grade/maximum side inclination | 20°/10° | |
| Weight(t) | 52 | |
| Driving speed (km/h) | 0.6-1 | |
Related Products and Accessories
Jaw Crusher and Cone Screen – OTX4
OTX4 is the master in the field of crawler mobile hard rock crushing and screening. It creatively integrates four major units: vibrating feeder, jaw crusher, multi-cylinder hydraulic cone crusher, and three-layer double-layer screen to achieve the crushing and screening effect of a split hard rock production line, opening a new journey of mobile hard rock crushing.
Impact crushing and screening all-in-one machine-OI350RTE
OLEEK OI-RTE series crawler mobile crushing and screening machine can realize crushing and screening operations on one crawler vehicle at the same time. It is upgraded to oil-electric dual power and equipped with PLC one-button intelligent start. It can perform primary crushing and secondary crushing. The whole machine has a wide range of applications and a high degree of intelligence.
Crawler Mobile Sand Making Plant-OV-S
OLEEK OV-S series crawler mobile sand making station, the main machine adopts new impeller and special sealing structure, low energy consumption, long life, with external power, oil-electric integration, full hydraulic three drive modes to choose from. Suitable for sand and gravel shaping or further sand making after secondary crushing, large processing capacity, good crushing particle shape.
Crawler mobile heavy screening station-OSZ2515E
OLEEK OSZ series crawler mobile heavy-duty screening station is equipped with a plate-type high-torque feeder, a first-layer heavy-duty grid screen and a 1.2-meter ultra-wide patterned belt conveyor. It can effectively carry the screening cycle of oversized materials and is suitable for special scenarios such as soil-rock separation and preliminary screening of construction waste, with particularly good results.
Crawler Mobile Screening Station-OS3618
OLEEK OS series crawler mobile screening station is equipped with a vehicle-mounted fully automatic folding belt conveyor. It has a large processing capacity and can perform fine screening of materials. It is suitable for screening finished materials after crushing various sand and gravel and construction waste. The overall transportation is flexible, durable and highly reliable.

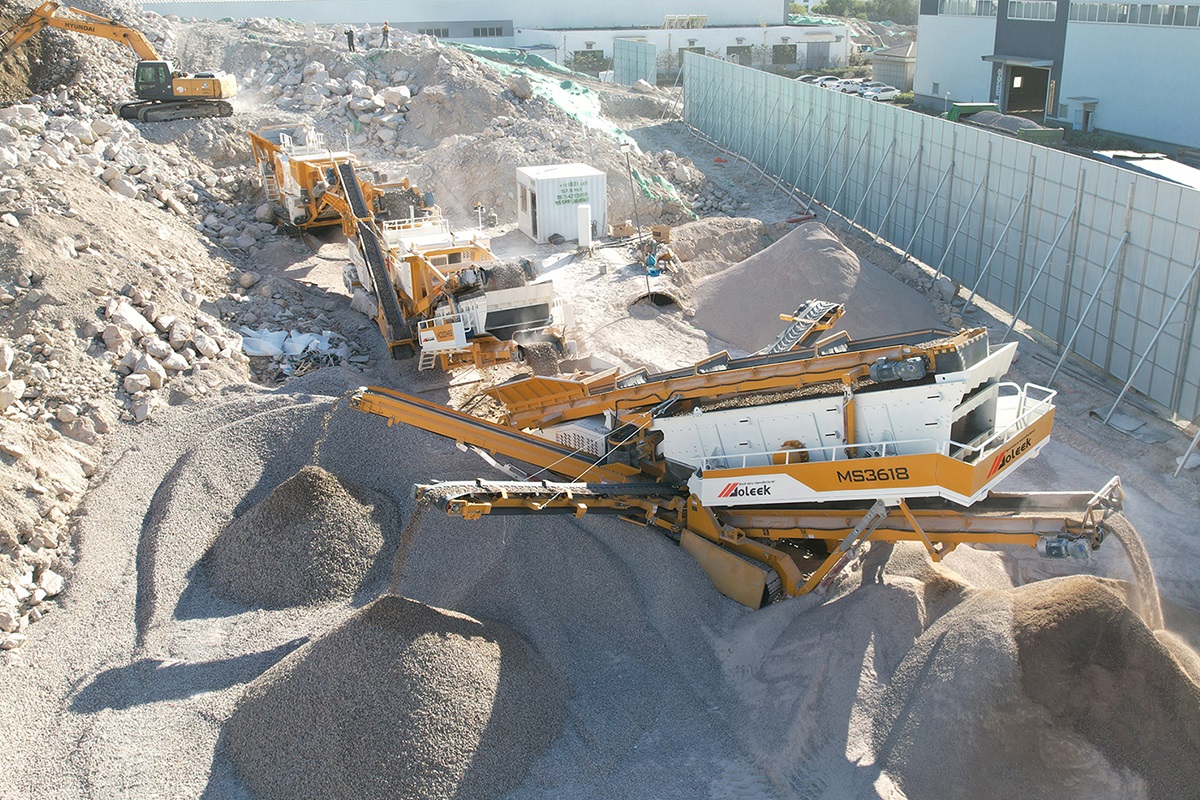

Our Case
